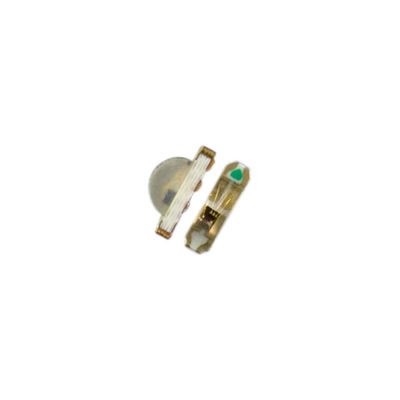

Side Viewing Digital Neon Pixel LED Lighting Source for PCBA LC8812B 3210

Side Viewing Digital Neon Pixel LED Lighting Source for PCBA LC8812B 3210

China Side Viewing Digital Neon Pixel LED Lighting Source for PCBA LC8812B 3210 supplier
Side Viewing Digital Neon Pixel LED Lighting Source for PCBA LC8812B 3210 supplier Side Viewing Digital Neon Pixel LED Lighting Source for PCBA LC8812B 3210 supplier

Large Image :  Side Viewing Digital Neon Pixel LED Lighting Source for PCBA LC8812B 3210

Product Details:

Place of Origin: Guangdong,China
Brand Name: LC
Certification: CE,RoHs
Model Number: LC8812B-3210

Payment & Shipping Terms:

Minimum Order Quantity: 1500pcs
Price: 0.06-0.08
Packaging Details: 1000pcs/bag,10bag per small inner box,40bag(40kpcs) per big box
Delivery Time: 3-7days
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 500000pcs per Week
Contact Now
Detailed Product Description
LED Type: 5050 SMD LED IC: LC8823
Control Protocol: LC8812,UCS1903 Emitting Color: Addressable RGB
Gray Scale: 256 Warranty: 2 Years
Lifespan: 50000H

Side Viewing Digital Neon Pixel LED Lighting Source for PCBA LC8812B 3210

1. Product Overview :

LC8812B-3210 is a smart LED control circuit and lightemitting circuit in one controlled LED source,which has the shape of a 3210 LED chip. Each lighting element is a pixel, and the intensities of the pixels are contained within the intelligent digital interface input. The output is driven by patented PWM technology, which effectively guarantees high consistency of the color of the pixels. The control circuit consists of a signal shaping amplification circuit, a built-in constant current circuit, and a high
precision RC oscillator.
The data protocol being used is unipolar NRZ communication mode. The 24-bit data is transmitted
from the controller to DIN of the first element, and if it is accepted it is extracted pixel to pixel. After an internal data latch, the remaining data is passed through the internal amplification circuit and sent out on the DO port to the remaining pixels. The pixel is reset after the end of DIN. Using automatic shaping forwarding technology makes the number of cascaded pixels without signal transmission only limited by signal transmission speed.
The LED has a low driving voltage (which allows for environmental protection and energy saving),
high brightness, scattering angle, good consistency, low power, and long life. The control circuit is integrated in the LED above.



2. Main Application Field:


Full color LED string light, LED full color module, LED super hard and soft lights, LED guardrail tube,
LED appearance / scene lighting
LED point light, LED pixel screen, LED shaped screen, a variety of electronic products, electrical
equipment etc..



Side Viewing Digital Neon Pixel LED Lighting Source for PCBA LC8812B 3210

Side Viewing Digital Neon Pixel LED Lighting Source for PCBA LC8812B 3210



More details pls contact us for LC8812B 3210 LED datasheet







Application of the digital led chips, it can be use in for the led lighting strip,keyboards,and led displays and many pcba products. Side Viewing Digital Neon Pixel LED Lighting Source for PCBA LC8812B 3210

Side Viewing Digital Neon Pixel LED Lighting Source for PCBA LC8812B 3210
Side Viewing Digital Neon Pixel LED Lighting Source for PCBA LC8812B 3210
