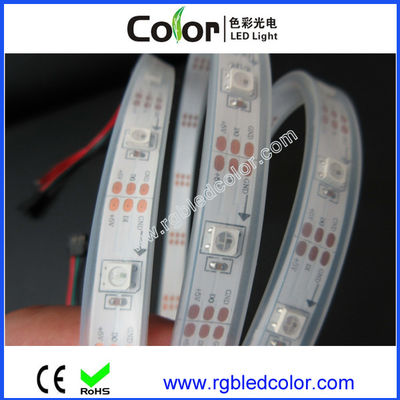

Large Image :  4pin ws2812b apa104 built in ic smd strip color changeable as you want

Product Details:

Place of Origin: Shenzhen
Brand Name: LC
Certification: CE,RoHS
Model Number: LC-APA104-30

Payment & Shipping Terms:

Minimum Order Quantity: 10m
Price: 4-5usd/m
Packaging Details: Anti-static Bags+carton bag
Delivery Time: 3days
Payment Terms: Paypal,TT,Western Union
Supply Ability: 15000M/week
Contact Now
Detailed Product Description

4pin ws2812b apa104 built in ic smd strip color changeable as you want



Name :  APA104 led strip   (It can be 30led/m,60led/m72led/m 144led/m)

Work voltage

DC5V

LEDs

30pcs

IC /M

30pcs

Power / M

9

Grey Grade

256

Image Pixel

30

Size

5000*12*2.5(mm)

PCB color

black/white

LED Viewing angle

120 degree

Standard length

5meters/roll

Waterproof

IP20/IP65/IP67/IP68



IP20 non waterproof:3M sticker on the back,



IP65  waterproof: Silcone gel or epoxy on the surface,



IP67  waterproof: Silicone tube,



IP68  waterproof: Siloicone gel inside silicone tube.





Features of IC :

General description



     APA104 is a intelligent control LED light source that the control circuit and RGB chip are integrated in a package of 5050 components. It internal include intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a 12V voltage programmable constant curre- nt control part, effectively ensuring the pixel point light color height consistent. The data transfer protocol use single NZR communication mode. After the pixel power- on reset, the DIN port receive data from controller, the first pixel collect initial 24 bit data then sent to the internal data latch, the other data which reshaping by the internal signal reshaping amplification circuit sent to the next cascade pixel through the DO port. After transmission for each pixel ,the signalto reduce 24bit. pixel adopt auto reshaping transmit technology, making the pixel cascade number is not limited the signal transmission, only depend on the speed of signal transmission.
       LED with low driving voltage, environmental protection and energy saving, high brightness, scattering angle is large, good consistency, low power, long life and other advantages. The control chip integrated in LED above becoming more simple circuit, small volume, convenient installation.




Features of Strip:

Eipstar superbright 5050 SMD top quanlity LED, high intensity and reliability.

Long life span 50,000+ hours

Cuttable every LEDs along the cutting marks, according to pratical requirement.

Flexible ribbon for curving around bends

Low power consumption



Show  pictures:



4pin ws2812b apa104 built in ic smd strip color changeable as you want

4pin ws2812b apa104 built in ic smd strip color changeable as you want

4pin ws2812b apa104 built in ic smd strip color changeable as you want

4pin ws2812b apa104 built in ic smd strip color changeable as you want

4pin ws2812b apa104 built in ic smd strip color changeable as you want

4pin ws2812b apa104 built in ic smd strip color changeable as you want

4pin ws2812b apa104 built in ic smd strip color changeable as you want

4pin ws2812b apa104 built in ic smd strip color changeable as you want

4pin ws2812b apa104 built in ic smd strip color changeable as you want

4pin ws2812b apa104 built in ic smd strip color changeable as you want

4pin ws2812b apa104 built in ic smd strip color changeable as you want
