DC5V 60led 60pixel/m apa104 individually addressable led strip

China DC5V 60led 60pixel/m apa104 individually addressable led strip supplier
DC5V 60led 60pixel/m apa104 individually addressable led strip supplier DC5V 60led 60pixel/m apa104 individually addressable led strip supplier DC5V 60led 60pixel/m apa104 individually addressable led strip supplier DC5V 60led 60pixel/m apa104 individually addressable led strip supplier

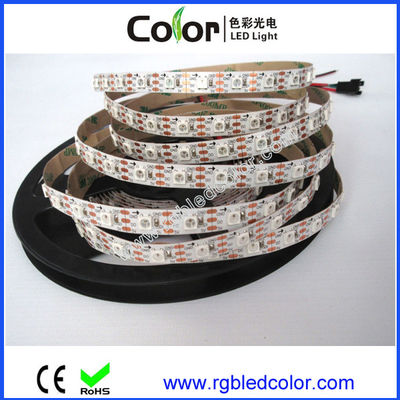

Large Image :  DC5V 60led 60pixel/m apa104 individually addressable led strip

Product Details:

Place of Origin: Shenzhen
Brand Name: LC
Certification: CE,RoHS
Model Number: LC-APA104-60

Payment & Shipping Terms:

Minimum Order Quantity: 10m
Price: 6.5-7.5usd/m
Packaging Details: Anti-static Bags+carton bag
Delivery Time: 3days
Payment Terms: Paypal,TT,Western Union
Supply Ability: 15000M/week
Contact Now
Detailed Product Description
IC: APA104 IC Qty: 60
LED: 5050SMD LED Chip: Epistar
LED Qty: 60 Pixel: 60
Gray Scale: 256 Board Material: FPCB
Thickness Of PCB: 2.5Ounce Waterproof: IP20/65/67/68
Size: 5000*12*2.5mm Wire Inside: 2ounce Copper
Working Voltage: DC5V Storage Temperature: -20deg To 60deg
Working Temperature: -20deg To 80deg Beam Angle: 120deg

DC5V 60led 60pixel/m apa104 individually addressable led strip



Name :  APA104 led strip   (It can be 30led/m,60led/m72led/m 144led/m)

Work voltage

DC5V

LEDs

60pcs

IC /M

60pcs

Power / M

18

Grey Grade

256

Image Pixel

60

Size

5000*12*2.5(mm)

PCB color

black/white

LED Viewing angle

120 degree

Standard length

5meters/roll

Waterproof

IP20/IP65/IP67/IP68



IP20 non waterproof:3M sticker on the back,



IP65  waterproof: Silcone gel or epoxy on the surface,



IP67  waterproof: Silicone tube,



IP68  waterproof: Siloicone gel inside silicone tube.





Features of IC :

General description



     APA104 is a intelligent control LED light source that the control circuit and RGB chip are integrated in a package of 5050 components. It internal include intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a 12V voltage programmable constant curre- nt control part, effectively ensuring the pixel point light color height consistent. The data transfer protocol use single NZR communication mode. After the pixel power- on reset, the DIN port receive data from controller, the first pixel collect initial 24 bit data then sent to the internal data latch, the other data which reshaping by the internal signal reshaping amplification circuit sent to the next cascade pixel through the DO port. After transmission for each pixel ,the signalto reduce 24bit. pixel adopt auto reshaping transmit technology, making the pixel cascade number is not limited the signal transmission, only depend on the speed of signal transmission.
       LED with low driving voltage, environmental protection and energy saving, high brightness, scattering angle is large, good consistency, low power, long life and other advantages. The control chip integrated in LED above becoming more simple circuit, small volume, convenient installation.




Features of Strip:

Eipstar superbright 5050 SMD top quanlity LED, high intensity and reliability.

Long life span 50,000+ hours

Cuttable every LEDs along the cutting marks, according to pratical requirement.

Flexible ribbon for curving around bends

Low power consumption



Show  pictures:

DC5V 60led 60pixel/m apa104 individually addressable led strip

DC5V 60led 60pixel/m apa104 individually addressable led strip

DC5V 60led 60pixel/m apa104 individually addressable led strip

DC5V 60led 60pixel/m apa104 individually addressable led strip

DC5V 60led 60pixel/m apa104 individually addressable led strip

DC5V 60led 60pixel/m apa104 individually addressable led strip

DC5V 60led 60pixel/m apa104 individually addressable led strip

DC5V 60led 60pixel/m apa104 individually addressable led strip

DC5V 60led 60pixel/m apa104 individually addressable led strip

DC5V 60led 60pixel/m apa104 individually addressable led strip

DC5V 60led 60pixel/m apa104 individually addressable led strip

Applications:

Widely used for home decoration use, hotels, clubs, shopping malls
Architectural decorative lighting, boutique atmosphere lighting
Extensively applied in Backlighting, concealed lighting, channel letter lighting
Emergency & security lighting, advertisement sign lighting
Decorative lights for holiday, event, show exhibition
Applicable for automobile and bicycle decoration, border or contour lighting
DC5V 60led 60pixel/m apa104 individually addressable led strip


Packaging & Shipping



Trade Terms:

Carton box

Payment: T/T ,Western Union or Paypal are welcomed

 Production lead time for5000m:4-5days

 Sample can be delivered in 3days

 Shipping freight are quoted under your requests

 Shipping port: Shenzhen, Mainland China

 Discounts are offered based on order quantities



DC5V 60led 60pixel/m apa104 individually addressable led strip







Our Services

       our company devote to addressable led lighting develop , From now ,,we have develop develop rgbw led chip ,which one chip have r,g,b,w chip inside 5050 smd ,and many new addressable led lighting , such as apa102 led strip ,apa104 led strip , addressable rgbw led strip ,dmx led strip , addressable single color led strip , ws2812b,ws2811 ,ws2801 lpd8806 led strip and so on , we not only accept OEM ,ODM service , but also provide technology support.



Our services:



1. For all your inquires about us or our products, we will reply you in detail within 24 hours

2. We own well-tranied and passional sales & after- sale services who can speak fluent Engligh language

 3. We offer OEM services. Can print your own logo on product , can customize the retail box packing and other things.

 4. We have very experienced R&D engineers and we have strong ability to do ODM projects.

 2014 Hong Kong Lighting Fair (Autumn Edition)



DC5V 60led 60pixel/m apa104 individually addressable led strip

 2015 Hong Kong Lighting Fair (Spring Edition)

DC5V 60led 60pixel/m apa104 individually addressable led strip

Why Choose Us ?

 Quality Control:100% of the lamps will be tested and keep lighting for 24 hours to test its quality reliability , and we will also test its temperature after 24 hours’ lighting.

 Then after it is cool we again test 100% of the lamps to see if it still work well . Each lamp should pass all these QC procedures before shipping to customer procedures before shipping to customer.
