|Working Voltage:||DC24V||LED Qty:||60led/m|
|LED Chip:||Epistar||IC Type:||Standard DMX512|

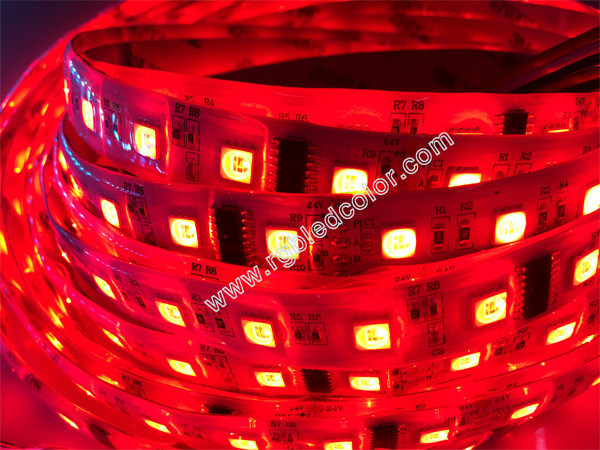

For our DMX512 LED strips is 5cables( 5V, PI/PO address writing wire, A(Dmx+),B(Dmx-),GND,as below:It`s the newest dmx led strip in the market with max485 inside dmx512ic,can be controlled without decoder,can be series connection and parallel connection.
When writing the address for the strips,you just need a address writer,and connect the PI ,+5V and GND to the address writer,so the address is arranged.
For the connection:just connect the A to Dmx+,B to Dmx-,GND to GND,So it is controllable(below is the connection to our controller)
For you have dmx controllers,the connection of it are the same way,for it is standard dmx led strip ,fellowing the standard international dmx portol.
The connection of address writer to five cables dmx512 as below:
