1800k to 7000k digital white color dimming SK6812WWA

1800k to 7000k digital white color dimming SK6812WWA

China 1800k to 7000k digital white color dimming SK6812WWA supplier
1800k to 7000k digital white color dimming SK6812WWA supplier 1800k to 7000k digital white color dimming SK6812WWA supplier 1800k to 7000k digital white color dimming SK6812WWA supplier 1800k to 7000k digital white color dimming SK6812WWA supplier

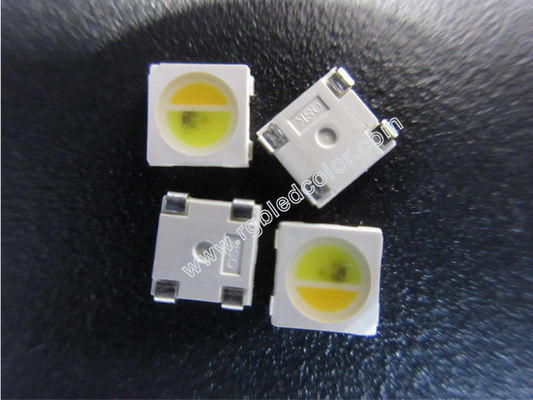

Large Image :  1800k to 7000k digital white color dimming SK6812WWA

Product Details:

Place of Origin: Shenzhen
Brand Name: LC
Certification: CE,RoHS
Model Number: LC-SK6812White

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: 0.065usd/pcs
Packaging Details: Anti-static Bags+carton bag
Delivery Time: 3days
Payment Terms: Paypal,TT,Western Union
Supply Ability: 100000pcs/Day
Contact Now
Detailed Product Description
Size: 5*5*1.4mm LED Chip: Epistar
Color: 1800-6500K

1800k to 7000k digital white color dimming SK6812WWA

    SK6812 white color smd led is three white colors dimming led,it is consist of amber color with 1800K,warm white color with the cct:3000k to 3200k and white color cct:6000-6500k,with digital ic to control the mixture color the CCT from 1800k to 6500k in one led ,it is almost the white color cct.That is to say when you need the led to light the warm white color so it is warm white , and you need it nature white so it can achieve nature white color...,
With sk6812 inside,you can make it digital control with regular changing color.

1800k to 7000k digital white color dimming SK6812WWA

1800k to 7000k digital white color dimming SK6812WWA

 More details:

Model: SK6812WWA

1. Product Overview :

SK6812WWA is a smart LED control circuit and light emitting circuit in one controlled LED source,

which has the shape of a 5050 LED chip. Each lighting element is a pixel, and the intensities of the

pixels are contained within the intelligent digital interface input. The output is driven by patented PWM

technology, which effectively guarantees high consistency of the color of the pixels. The control

circuit consists of a signal shaping amplification circuit, a built-in constant current circuit, and a high

precision RC oscillator.

The data protocol being used is unipolar NRZ communication mode. The 24-bit data is transmitted

from the controller to DIN of the first element, and if it is accepted it is extracted pixel to pixel. After an

internal data latch, the remaining data is passed through the internal amplification circuit and sent out

on the DO port to the remaining pixels. The pixel is reset after the end of DIN. Using automatic

shaping forwarding technology makes the number of cascaded pixels without signal transmission only

limited by signal transmission speed.

The LED has a low driving voltage (which allows for environmental protection and energy saving),

high brightness, scattering angle, good consistency, low power, and long life. The control circuit is

integrated in the LED above.

2. Main Application Field:

● Full color LED string light, LED full color module, LED super hard and soft lights, LED guardrail tube,

LED appearance / scene lighting

● LED point light, LED pixel screen, LED shaped screen, a variety of electronic products, electrical

equipment etc..

3. Description:

● Top SMD internal integrated high quality external control line serial cascade constant current IC;

● control circuit and the chip in SMD 5050 components, to form a complete control of pixel, color

mixing uniformity and consistency;

●built-in data shaping circuit, a pixel signal is received after wave shaping and output waveform

distortion will not guarantee a line;

●The built-in power on reset and reset circuit, the power does not work;

●gray level adjusting circuit (256 level gray scale adjustable);

● red drive special treatment, color balance;

● line data transmission;

● plastic forward strengthening technology, the transmission distance between two points over 10M;

●Using a typical data transmission frequency of 800 Kbps, when the refresh rate of 30 frames per sec

4. Mechanical Dimensions:

1800k to 7000k digital white color dimming SK6812WWA1800k to 7000k digital white color dimming SK6812WWA1800k to 7000k digital white color dimming SK6812WWA1800k to 7000k digital white color dimming SK6812WWA1800k to 7000k digital white color dimming SK6812WWA1800k to 7000k digital white color dimming SK6812WWA1800k to 7000k digital white color dimming SK6812WWA1800k to 7000k digital white color dimming SK6812WWA1800k to 7000k digital white color dimming SK6812WWA1800k to 7000k digital white color dimming SK6812WWA1800k to 7000k digital white color dimming SK6812WWA1800k to 7000k digital white color dimming SK6812WWA1800k to 7000k digital white color dimming SK6812WWA1800k to 7000k digital white color dimming SK6812WWA
