SK6812RGBY LED Chip

Brand Name:	LC
Model Number:	LC-SK6812RGBY
MOQ:	1000pcs
Price:	0.05usd/pcs
Delivery Time:	3days
Payment Terms:	Paypal,TT,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen

Certification:

CE,RoHS

Size:

5*5*1.4mm

LED Chip:

Epistar

Color:

Digital RGBY

Packaging Details:

Anti-static Bags+carton bag

Supply Ability:

50000pcs/Day

Product Description

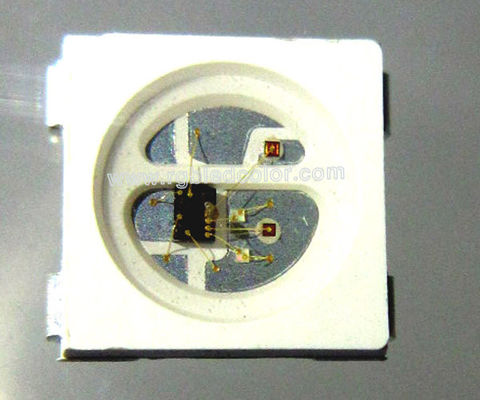

SK6812RGBY LED Chip

SPECIFICATION

INTEGRATED LIGHT SOURCE INTELLIGENT CONTROL OF

CHIP-ON-TOP SMD TYPE LED

Document No.: SPC/SK6812RGBY

Model No.: SK6812RGBY

Description: 5.5*5.0*1.6mm Top SMD Type 0.25 Watt Power

integrated light source Intelligent control LED

SK6812 RGBY: The default is the chips with IC integration

R: RED 620-630NM

G: GREEN 515-525 NM

B: BLUE 460-470 NM

Y: YELLOW 590-595 NM

General Description

SK6812RGBY is a smart LED control circuit and light emitting circuit in one controlled LED source, which has the shape of a 5050 LED chip. Each lighting element is a pixel, and the intensities of the pixels are contained within the intelligent digital interface input. The output is driven by patented PWM technology, which effectively guarantees high consistency of the color of the pixels. The control circuit consists of a signal shaping amplification circuit, a built-in constant current circuit, and a high precision RC oscillator.

The data protocol being used is unipolar NRZ communication mode. The 32-bit data is transmitted from the controller to DIN of the first element, and if it is accepted it is extracted pixel to pixel. After an internal data latch, the remaining data is passed through the internal amplification circuit and sent out on the DO port to the remaining pixels. The pixel is reset after the end of DIN. Using automatic shaping forwarding technology makes the number of cascaded pixels without signal transmission only limited by signal transmission speed.

The LED has a low driving voltage (which allows for environmental protection and energy saving), high brightness, scattering angle, good consistency, low power, and long life. The control circuit is integrated in the LED above.

2. Main Application Field:

● Full color LED string light, LED full color module, LED super hard and soft lights, LED guardrail tube,

LED appearance - scene lighting

● LED point light, LED pixel screen, LED shaped screen, a variety of electronic products, electrical equipment etc..

3. Description:

● Top SMD internal integrated high quality external control line serial cascade constant current IC;

● control circuit and the chip in SMD 5050 components, to form a complete control of pixel, color mixing uniformity and consistency;

●built-in data shaping circuit, a pixel signal is received after wave shaping and output waveform distortion will not guarantee a line;

●The built-in power on reset and reset circuit, the power does not work; ●gray level adjusting circuit (256 level gray scale adjustable);

● red drive special treatment, color balance;

● line data transmission;

● plastic forward strengthening technology, the transmission distance between two points over 10M;

● Using a typical data transmission frequency of 800 Kbps, when the refresh rate of 30 frames per sec
