5years warranty high quality LED RF Controllers

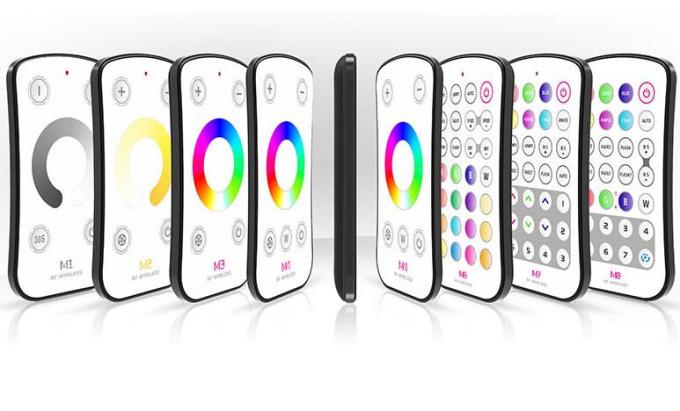

M1, M2, M3, M4, M6, M7, M8 Remote Control |
|
| Working voltage | DC3V(Battery CR2032 ) |
| Working Frequency | 433.92 MHz |
| Remote Distance | 40-50m |
| Working Temp. | -30℃~55℃ |
| Dimensions | L104×W60×H9mm |
| Weight (N.W.) |
42g |
One receiver compatible 7 different functions remote controllers. Dimmer, color temperature,RGB, RGBW, select what you want. Such as, M3, M4, M6, M7 and M8 control the receiver connected with RGB lights meanwhile, and function is 5 times than general ones.
10 remote control for 1 receiver
1 receiver can be controlled by 10 same or different RF remote at most for dimming
M4-5A CV Receiving controller |
|
| Power input | DC5V-DC24V |
| Max Current load | 5A ×4CH Max 20A |
| Max Output power | 100W/240W/480W(5V/12V/24V) |
| Compatible remote | M1/M2/M3/M4//M5/M6/M7/M8 |
| Working Temp. | -30℃~55℃ |
| Dimensions | L175×W44×H30(mm) |
| Weight (N.W.) | 125g |
