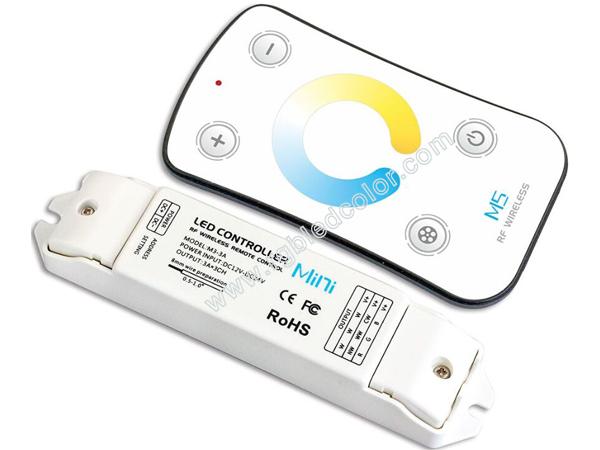

M5 3ch white cct dimmable controller
M1, M2, M3, M5, M6, M7 Remote Control |
|
| Working voltage | DC3V(Battery CR2032 ) |
| Working Frequency | 433.92 MHz |
| Remote Distance | 40-50m |
| Working Temp. | -20℃~55℃ |
| Dimensions | L104×W60×H9mm |
| Weight (N.W.) | 42g |
M3-3A Receiving controller |
|
| Power input | DC12V-DC24V |
| Max Current load | Max 3A ×3CH |
| Max Output power | 108W/216W (12V/24V) |
| Compatible remote | M1/M2/M3/M5/M6/M7 |
| Working Temp. | -30℃~55℃ |
| Dimensions | L135×W30×H20mm |
| Weight (N.W.) | 47g |

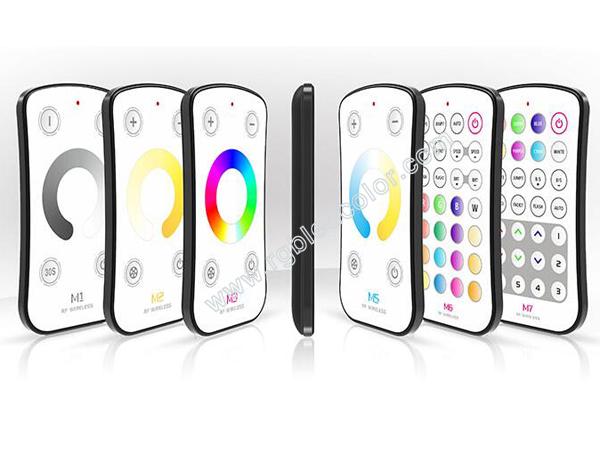

6 Remote controllers for optional

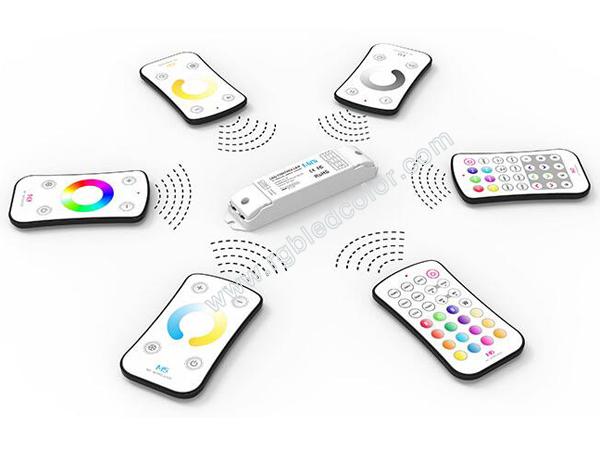

One receiver compatible 6 different functions remote controllers. Dimmer, color temperature,RGB, select what you want. Such as, M3,M6 and M7 control the receiver connected with RGB lights meanwhile, and function is 3 times than general ones.
Picturers
