LED Strip Pixel Controller T-8000A
One.T-8000A Controller System features:
1. 32—256 Gray level,Support software Gamma correction.
2. Support the rules and special-shaped handle.
3. Eight--port output,every port can support 512-1024 pixels.
4. Off-line (SD Card) control, can be multiple controllers used in combination, play back content stored in the SD card.
5.T-8000S store a maximum of 16 programs,copy multiple files to the SD card in order,after formatting the SD card as “FAT” format.
6. The program must be named in orders ,just as :00_1.led, 01_1.led, 02_1.led.
7. Compatible with single and dual ICs, if you control a single line IC LED lights, without being connected to the CLK line.
8. New T-8000S have a screen, the controller can be encrypted to limit the times of use.
NOTE: 1.When T8000S controller control less than 512 lamps the frame rate can reach 30fps. When T-8000S controls more than 512 lamps and less than 1024 lamps the frame rate will slow down automatically.
2. T-8000S must use the new software LedEdit 2012.
Two.Support chips:
Chip type | Software code& Controller type | Pixels/(MAX) | Note |
LPD6803,D705,1101,6909, 6912 | T-8000-6803 | 8192 | |
LPD8806,LPD8809 | T-8000-8806 | 8192 | |
TM1803,TM1804,TM1809,TM1812 | T-8000-TM | 8192 | TM1804 and TM1809 are divided into high speed and low speed |
TM1903,TM1904,TM1909,TM1912 | T-8000-TM19 | 8192 | |
UCS6909,UCS6912,UCS7009,UCS5903 | T-8000-UCS-32 | 8192 | |
UCS1903,UCS1909,UCS1912 | T-8000-UCS-256 | 8192 | divided into high speed and low speed |
UCS3903 | T-8000-UCS-1024 | 8192 | |
DMX512 | T-8000-DMX | 1360/4096 | Compatible with standard DMX512 |
WS2801,WS2803,APA102 | T-8000-WS | 8192 | |
WS2811 APA104 | T-8000-WS2811 | 8192 | divided into high speed and low speed |
DS189 | T-8000-DS189 | 8192 | |
TLS3001,TLS3002,TLS3008 | T-8000-TLS | ____ | |
P9813 | T-8000-P9813 | 8192 | |
SM16715 | T-8000-SM16715 | 8192 | divided into high speed and low speed |
SM16716 | T-8000-SM16716 | 8192 | |
BS0901,BS0902 | T-8000-0901 | 8192 | |
BS0815 | T-8000-0815 | 8192 | |

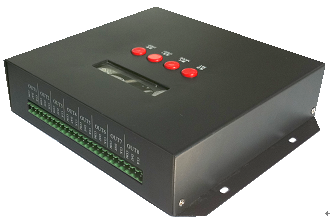

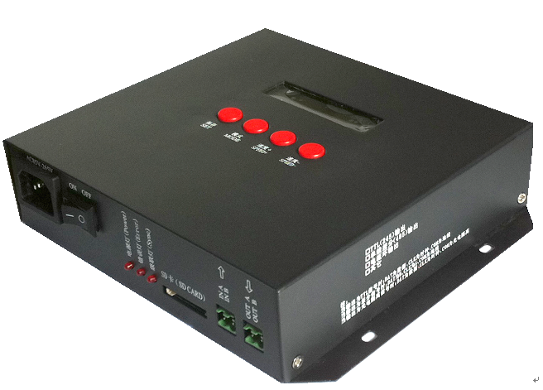

Three. Appearance picture:
