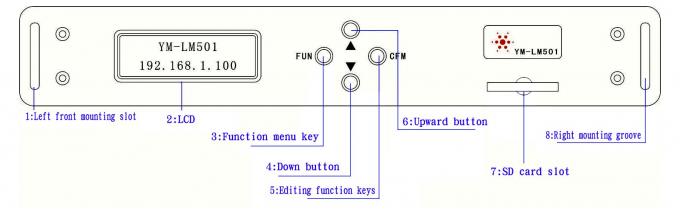

Front Panel

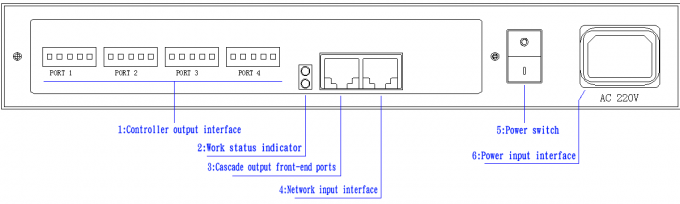

Rear Panel

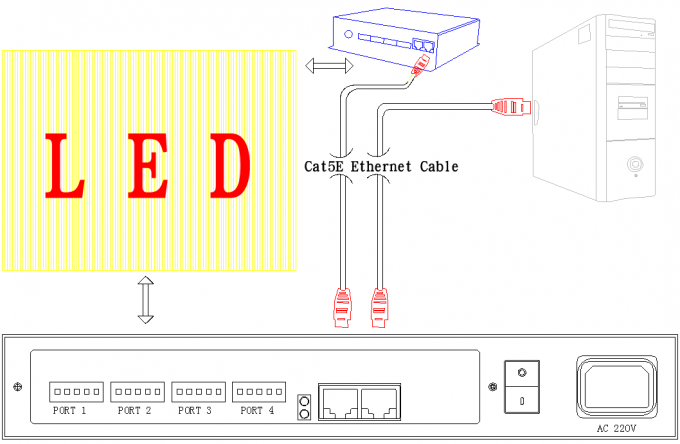

2. Connections
3. System Configuration
Minimum system configuration:
CPU: XM 266 Pentium; Memory: 64M; Space: 700M hard disk space
Sound Card: Directx Sound compatible
Graphics: Direct3D compatible (16Mb or more)
Recommended configuration:
CPU: Pentium 400; Memory: 128Mb; Space: 700M hard disk space
Sound Card: Directx Sound compatible
Graphics: Direct3D compatible (32Mb or more)
4. Settings
4.1 Playback Speed Settings
Press FUN to enter playback speed setting menu;
Press CFM to enter edit mode；
Press ▲/▼ to adjust the speed；
Press CFM to confirm the speed；
Press Fun to return to the main interface .
4.2 Brightness adjustment
Press FUNà▲ to enter the brightness setting menu;
Press CFM to enter the edit mode；
Press▲/▼ to adjust the brightness；
Press CFM to confirm；
Press FUN to return the main interface.
4.3 Clock Adjustment
Press FUNà▲à▲ to enter clock adjustment menu；
Press CFM to enter edit mode；
Press▲/▼to adjust the clock；
Press CFM to confirm；
Press FUN to return to the main interface.
4.4 IP Address
IP addresses are consisted by 4 decimal digits (IP1.IP2.IP3.IP4), such
as 192.168.1.1. IP address is one of important parameters of the
controller, it will be shown on the main interface after power-on.
PressFUNà▲à▲à▲ to enter IP address setting menu,the current IP address is
shown in the screen；
Press CFM to enter IP address1 edit mode；
Press▲/▼ to adjust IP address1；
Press CFM to confirm IP address1,then enter IP address2 edit mode；
Press▲/▼ to adjust IP address2；
Press CFM to confirm IP address2,then enter IP address3 edit mode；
Press▲/▼ to adjust IP address3；
Press CFM to confirm IP address3,then enter IP address4 edit mode；
Press▲/▼ to adjust IP address4；
Press CFM to confirm IP address4,four IP addresses are shown in the screen；
Press FUN to return to the main interface.
4.5 MAC address
MAC address is consisted by six hexadecimal digits
(MAC1-MAC2-MAC3-MAC4-MAC5-MAC6), such as :00-e0-b1-08-07-f3
Press FUNà▲à▲à▲à▲ to enter MAC address setting, the current MAC address
is shown on the screen；
Press CFM to enter MAC1 address edit mode；
Press▲/▼ to modify MAC1 address；
Press CFM to confirm MAC1 address,then enter MAC2 address edit mode；
Press ▲/▼ to modify MAC2 address；
Press CFM to confirm MAC2 address,then enter MAC3address edit mode;
Press▲/▼ to modify MAC3 address；
Press CFM to confirm MAC3 address,then enter MAC4 address edit mode；
Press▲/▼to modify MAC4 address；
Press CFM to confirm MAC4 address,then enter MAC5 address edit mode；
Press▲/▼ to modify MAC5 address；
Press CFM to confirm MAC5 address,then enter MAC6 address edit mode；
Press▲/▼ to modify MAC6 address；
Press CFM to confirm MAC6 address,MAC6 address is shown in the screen；
Press FUN to return to the main interface.
5. Main set Software Setting
5.1. You need set the controller IP address before the main set software
can communicate with the controller.

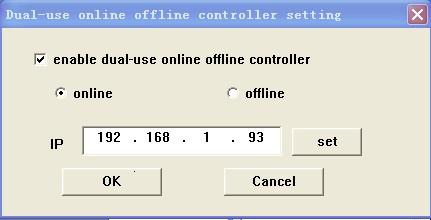

5.2. Run "LED display software" (V2.844 or above) and select "online
/offline”, shown as below:
5.3. After you’ve done setting the IP address, you can play the patterns.
