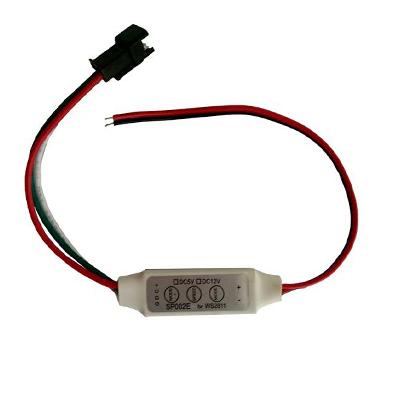

SP002E mini LED controller |
SP002E Micro-Controller Operating Instructions
|
1. Features:
1.Works stably, easy to use and connection is simple;
2.Can be customized to support almost every kind of one-wire or two-wire LED-DRIVER-IC;
3.With 76 kinds of patterns,which are vivid and beautiful;
4.Can control up to 2048 pixels;
5.Preventing reverse connection of power supply.
2.Functions Of Keys:
|
MODE+
|
Switching patterns forwardly
|
|
SPEED
|
Switching speed
|
|
MODE-
|
Switching patterns backwardly
|
|
MODE+ AND MODE-
|
Pressing MODE+ and MODE- at the same time and release at the same time into AUTO Mode
|
3. Parameters:
Operating Voltage:5V or 12V;
Power Consumption: Less than 1W;
Supported IC by now:WS2801,WS2811,LPD6803,LPD8806,TM1809,UCS1903,UCS9812,APA102,APA104.Can be customized to
support other DRIVER-IC.
Cautions: Please make sure the power supply voltage is match to your controller before you power it.
4. Wire Connections:
