Wholesale 6 pin Sanan High Brightness SK9822 APA102C 5050 RGB LED chip

Name: Wholesale 6 pin Sanan High Brightness SK9822 APA102C 5050 RGB LED chip
Brand: Shenzhen LED Color CO.,LTD.
SKU: LC8822
Price: 0.05 USD
Availability: InStock

Brand Name:	LC
Model Number:	LC8822
MOQ:	1000pcs
Price:	0.05-0.06
Delivery Time:	3-7days
Payment Terms:	L/C, T/T, Western Union,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong,China

Certification:

CE,RoHs

LED Type:

5050 SMD LED

IC:

LC8822

Control Protocol:

LC8822,APA102,SK9822

Emitting Color:

Digital RGB

Gray Scale:

256

Warranty:

2 Years

Lifespan:

50000H

Packaging Details:

1000pcs/bag,10bag per small inner box,40bag(40kpcs) per big box

Supply Ability:

500000pcs per Week

Product Description

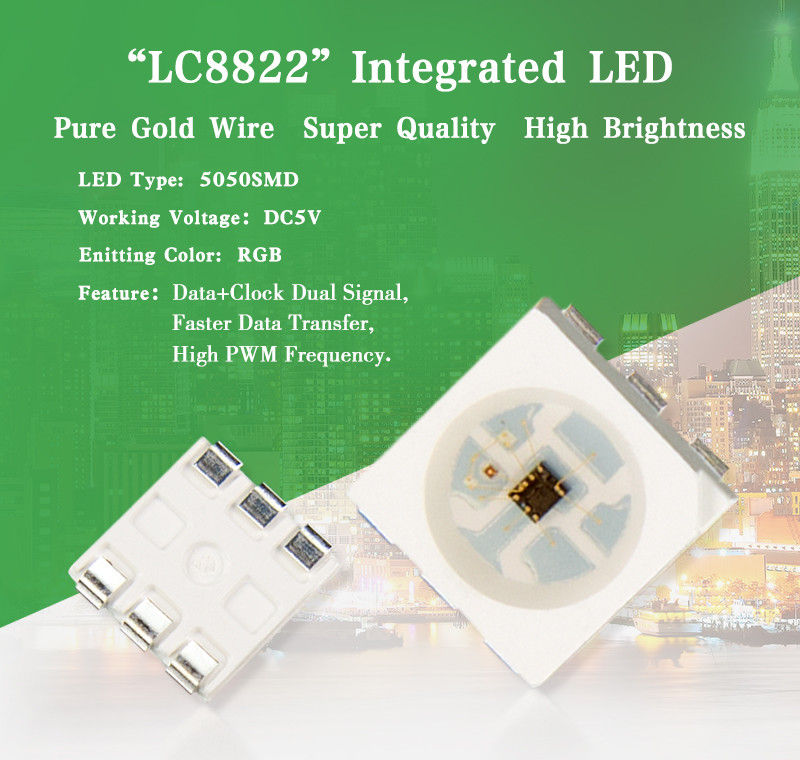

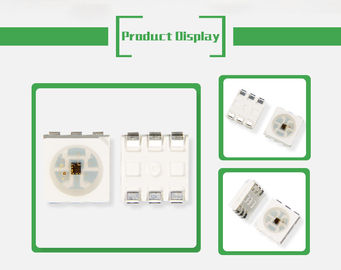

Wholesale 6 pin Sanan High Brightness SK9822 APA102C 5050 RGB LED chip

1. General description

LC8822 is a two-wire transmission channel three (RGB) driving intelligent control circuit and the
light emitting circuit in one of the LED light source control. Products containing a signal decoding
module, data buffer, a built-in constant current circuit and RC oscillator; CMOS, low voltage, low
power consumption; 256 level gray scale PWM adjustment and 32 brightness adjustment; use the
double output, Data and synchronization of the CLK signal, connected in series each wafer output
action synchronization.

Datasheet of LC8822 LED

Wholesale 6 pin Sanan High Brightness SK9822 APA102C 5050 RGB LED chip 0

Wholesale 6 pin Sanan High Brightness SK9822 APA102C 5050 RGB LED chip 1

Wholesale 6 pin Sanan High Brightness SK9822 APA102C 5050 RGB LED chip 2

Wholesale 6 pin Sanan High Brightness SK9822 APA102C 5050 RGB LED chip 3

Wholesale 6 pin Sanan High Brightness SK9822 APA102C 5050 RGB LED chip 4

Application of the digital led chips, it can be use in for the led lighting strip,keyboards,and led displays and many pcba products. Wholesale 6 pin Sanan High Brightness SK9822 APA102C 5050 RGB LED chip 5
