|LED Type:||5050 SMD LED||IC:||LC8823|
|Control Protocol:||LC8812,UCS1903||Emitting Color:||Addressable RGB|
|Gray Scale:||256||Warranty:||2 Years|

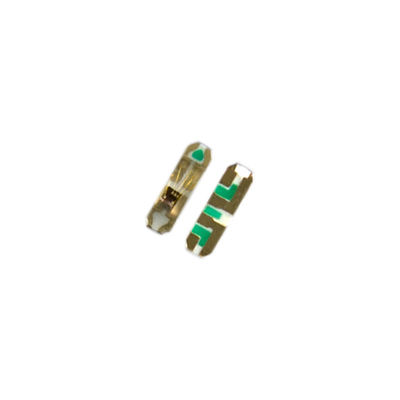

2020 Newest Arrival 3210 Side Emitting Smallest RGB LED Chip
LC8812B-3210 is a smart LED control circuit and lightemitting circuit in one controlled LED source,which has the shape of a 3210 LED chip. Each lighting element is a pixel, and the intensities of the pixels are contained within the intelligent digital interface input. The output is driven by patented PWM technology, which effectively guarantees high consistency of the color of the pixels. The control circuit consists of a signal shaping amplification circuit, a built-in constant current circuit, and a high
precision RC oscillator.
The data protocol being used is unipolar NRZ communication mode. The 24-bit data is transmitted
from the controller to DIN of the first element, and if it is accepted it is extracted pixel to pixel. After an internal data latch, the remaining data is passed through the internal amplification circuit and sent out on the DO port to the remaining pixels. The pixel is reset after the end of DIN. Using automatic shaping forwarding technology makes the number of cascaded pixels without signal transmission only limited by signal transmission speed.
The LED has a low driving voltage (which allows for environmental protection and energy saving),
high brightness, scattering angle, good consistency, low power, and long life. The control circuit is integrated in the LED above.
Full color LED string light, LED full color module, LED super hard and soft lights, LED guardrail tube,
LED appearance / scene lighting
LED point light, LED pixel screen, LED shaped screen, a variety of electronic products, electrical
More details pls contact us for LC8812B 3210 LED datasheet
Application of the digital led chips, it can be use in for the led lighting strip,keyboards,and led displays and many pcba products.
