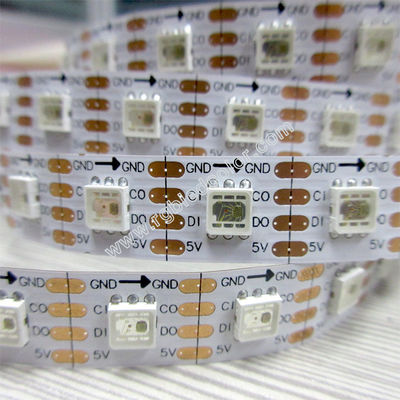

APA102 Super LED Strip

APA102 LED is a new kind of digital rgb full color built-in IC SMD, which has one data cable with one independent clock cable,this makes the signal travels very rapid and stable quality.Even to show the videos with a large data transmission on the LED,it also works smoothly and won`t get stuck.

This is type of APA102 super led strip is made of the APA102 Super LEDs which is different packaged,with high quality and super stable.

• IC Type:APA102 Built-in IC
• LED Type:High Brightness 5050SMD LED,
• LED Qty :30/32/48/60/72/144 LED/m ,
• IC Qty: 30/32/48/60/72/144IC/m,
• 16.4 ft / 5m Reel
• 30/32/48/60/72/144Pixels per meter,
• Current:each chip is 20mA,60mA/LED,0.3W Max Power/led
• 1 Pixel Per 5050 High Quality RGB LED
• Viewing angle: 120degree
• Gray Scale:256

• PCB:2.5 ounce thickness board,2 ounce copper wire inside,white or black PCB
• 4 cables:Black :GND,Blue :DATA,Yellow:Clock,Red :+5V.


•

  Dimension:

• 5000*12*2.5mm (non-waterproof),

• 5000*12*3.5mm (IP65 waterproof),

• 5000*14.5*4.5mm (IP67/68 waterproof),

• Waterproof IP grade:IP20 Non-waterproof with 3M sticker on the back,
• IP65 waterproof is silicone gel or epoxy on the surface,
• IP67: silicone tube,
• IP68: silcone gel (or epoxy) inside silicone tube.

Features:

• Each led individual controlled,every led cuttable.
• Operating Voltage 5 Voltage DC.
• SPI signal control system, DVI video control system,DMX console controllable.
• Madrix Software available (work with some special controllers).
• high intensity video screen,video wall,water running effect,breathing effect,color chasing,etc.

•

• Connection Diagram of APA102 LED Strip:

•

4 Wire output : Data ,Clock ,GND ,Anode, Built-in IC

Show  pictures:
