SK9822 LED Chip

China SK9822 LED Chip supplier
SK9822 LED Chip supplier SK9822 LED Chip supplier

Large Image :  SK9822 LED Chip

Product Details:

Place of Origin: Shenzhen
Brand Name: LC
Certification: CE,RoHS
Model Number: LC-SK9822LED

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: 0.05usd/pcs
Packaging Details: Anti-static Bags+carton bag
Delivery Time: 3days
Payment Terms: Paypal,TT,Western Union
Supply Ability: 50000pcs/Day
Contact Now
Detailed Product Description
IC Type: SK9822 Size: 5*5*1.4mm
LED Chip: Epistar Color: Full Color RGB

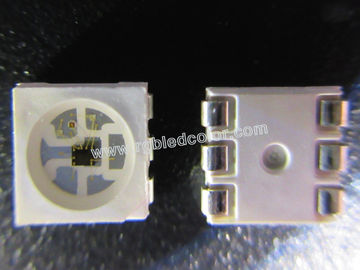

SK9822 LED Chip

SK9822 is a new type of IC for 3ch led chips` color dimming control,which has one double signal line-- the data cable and clock cable.After  a series of improvement design,it can well compatible with other two signal IC,and share the same controller system,

SK9822 LED Chip
SK9822 LED Chip

More details as below:
1. Product Overview :
SK9822 is a two-wire transmission channel three (RGB) driving intelligent control circuit and the light emitting circuit in one of the LED light source control. Products containing a signal decoding module, data buffer, a built -in constant current circuit and RC oscillator; CMOS, low voltage, low power consumption; 256 level grayscale PWM adjustment and 32 brightness adjustment; use the double output, Data and synchronization of the CLK signal, connected in series each wafer output action synchronization.
2. Main Application Field:
● Full color LED string light, LED full color module, LED super hard and soft lights, LED guardrail tube, LED appearance / scene lighting
● LED point light, LED pixel screen, LED shaped screen, a variety of electronic products, electrical equipment etc..
3. Description:
● Top SMD internal integrated high quality external control line serial cascade constant current IC; 5V application; default on electric lights;
● Control circuit and the RGB chip in SMD 5050 components, to form a complete control of pixel, color mixing uniformity and consistency;
● The two-wire synchronous control.
The three RGB output control, 8Bit (256) color; 5Bit (32) to adjust the brightness;
● The three constant current drive, self detection function specific signal
● The maximum frequency of 30MHZ serial data input
● The double data transmission, built-in support uninterrupted oscillation PWM output, can maintain a static image.

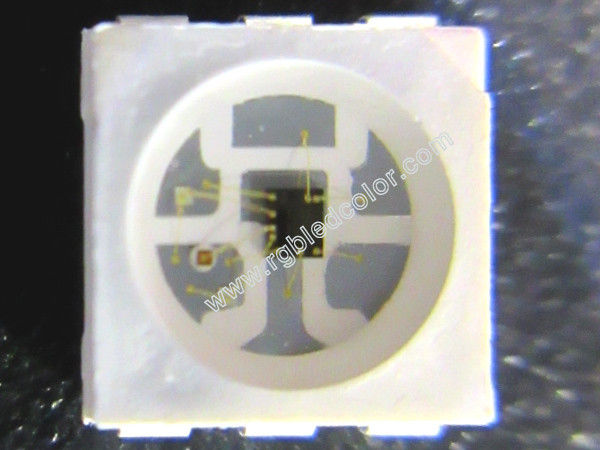

sk9822 led solder pad
SK9822 LED Chip
pin configuration of sk9822
SK9822 LED Chip
series data structure
SK9822 LED Chip
