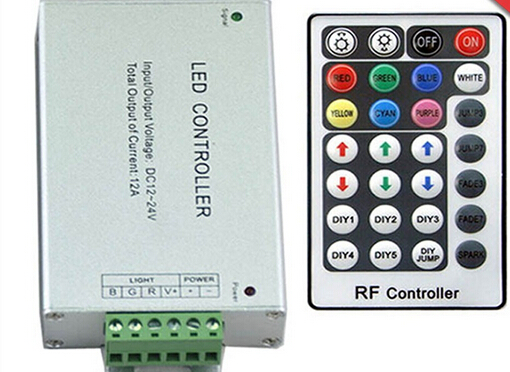

DC12-24V Wireless 28 key rf remote rgb controller
Aluminum RF 28 Keys RGB controller adopted the advanced computer control chip. Its mainly used to controlled all kinds of constant voltage led lights,such as:LED source, LED strips,led wall washer,wall Glass curtain lights,etc.It integrated with easy connection,simplemanipulation and power off memory function.User can choose the 7 color jump, fade,fash mode ,and the lights brightness are adjustable according to the user actual requirement.
-
Working temperature:-20-60℃
-
Supply voltage:DC12~24V
-
0utput:3 channels
-
Connecting mode:common anode
-
Controller size:L130×W65×H25mm
-
Package size:L135×W80×H54mm
-
New weight:180g
-
Gross weight:210g
-
Static power consumption:<1W
-
Output current:<4A/ch or <8A/ch (optional)
-
Output power: 12V/4A < 144W;12V/8A< 288W;
-
24V/4A< 288W;24V/8A< 576W
Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;

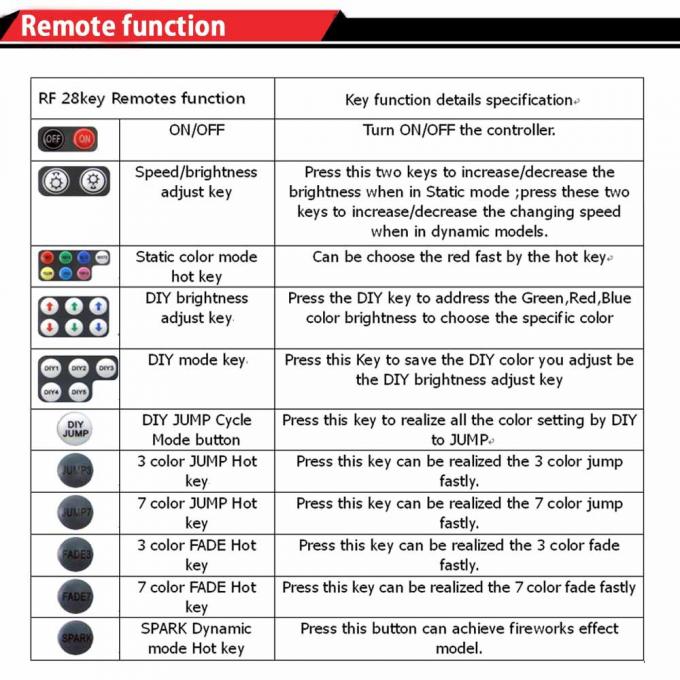

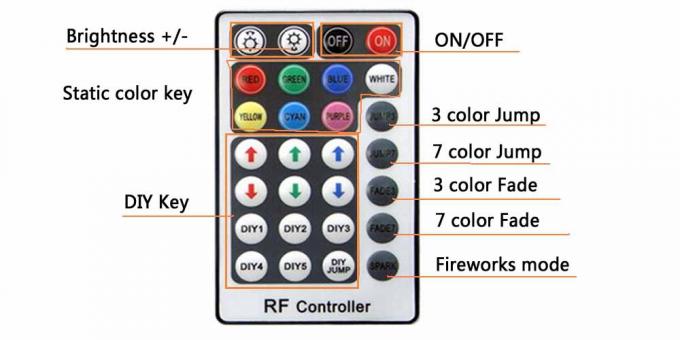

Adopt wireless control method, 28 keys in total, function of each button as below:
|
Brightness +
|
Brightness -
|
pause
|
ON/OFF
|
|
Static red
|
Static green
|
Static blue
|
Static white
|
|
Static orange
|
Static cyan
|
Static dark blue
|
milk-white
|
|
Static yellow
|
Static light blue
|
Static purple
|
Green-white
|
|
Static light yellow
|
Static sky blue
|
Static brown
|
Blue-white
|
|
Red brightness +
|
Green brightness +
|
Blue brightness +
|
Speed +
|
|
Red brightness -
|
Green brightness -
|
Blue brightness -
|
Speed -
|
|
DIY 1
|
DIY 2
|
DIY 3
|
Auto
|
|
DIY 4
|
DIY 5
|
DIY 6
|
stroboflash
|
|
3 color jump
|
7 color jump
|
3 color fade
|
7 color fade
|
This RF28keys controller have match code version and not match code version for optional.For the match code version, if you want to match code again, just simply need to press Red buttonwithin 5 seconds when power the controller.(remarks:this function just for the match code version only)
-
This products Input voltage is DC12-24V,other input voltage are not allowed.
-

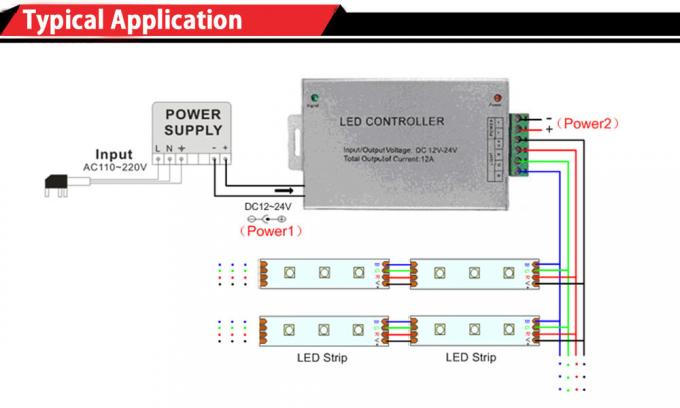

Lead wire should be connected correctly,according to the wire color and the connecting diagram offers.
-
Overload are prohibited.
