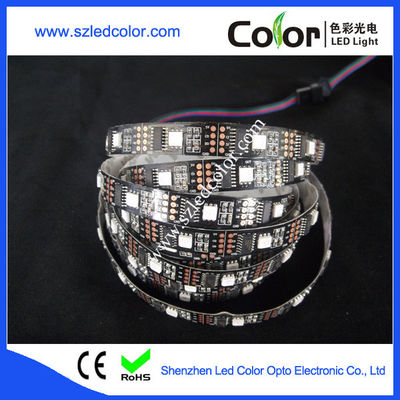

individual control ws2801 full color led strip

individual control ws2801 full color led strip

ED Type: Epistar SMD 5050

Color: RGB

LED Quantity: 32leds/Meter

Pixel: 32 pixels/Meter

IC Type: WS2801

Gray Scale: 256

View angle:120°

Working Input Voltage: 5V

Drive Mode:Contant Voltage

Output power: 50W /5 Meter

Working Tempreture:-20° to 60°

4 cables: DC+, CLK, DAT, GND

Dimension:

5000*12*2.5mm (non-waterproof),

5000*12*4mm (IP65 waterproof),

5000*12*4mm (IP67/68 waterproof).

Waterproof Rate:

IP20: Non-waterproof with 3M sticker on the back,

IP65: waterproof is silicone gel or epoxy on the surfacewith 3M sticker on the back,

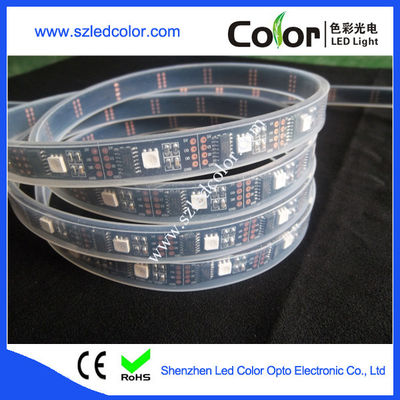

I67: silicone tube,

IP68: silcone gel(or epoxy) inside silicone tube.

Connection:

1) Signal wire: DC+, CLK, DAT, GND
2) DC+ and GND connect to power supplier; CLK, DAT and GND connect to controller
3) Relative Controller: SPI controller support ws2801; when use DMX decorder, can connect to DMX system
4) Support online control
